A variety of scanning methods

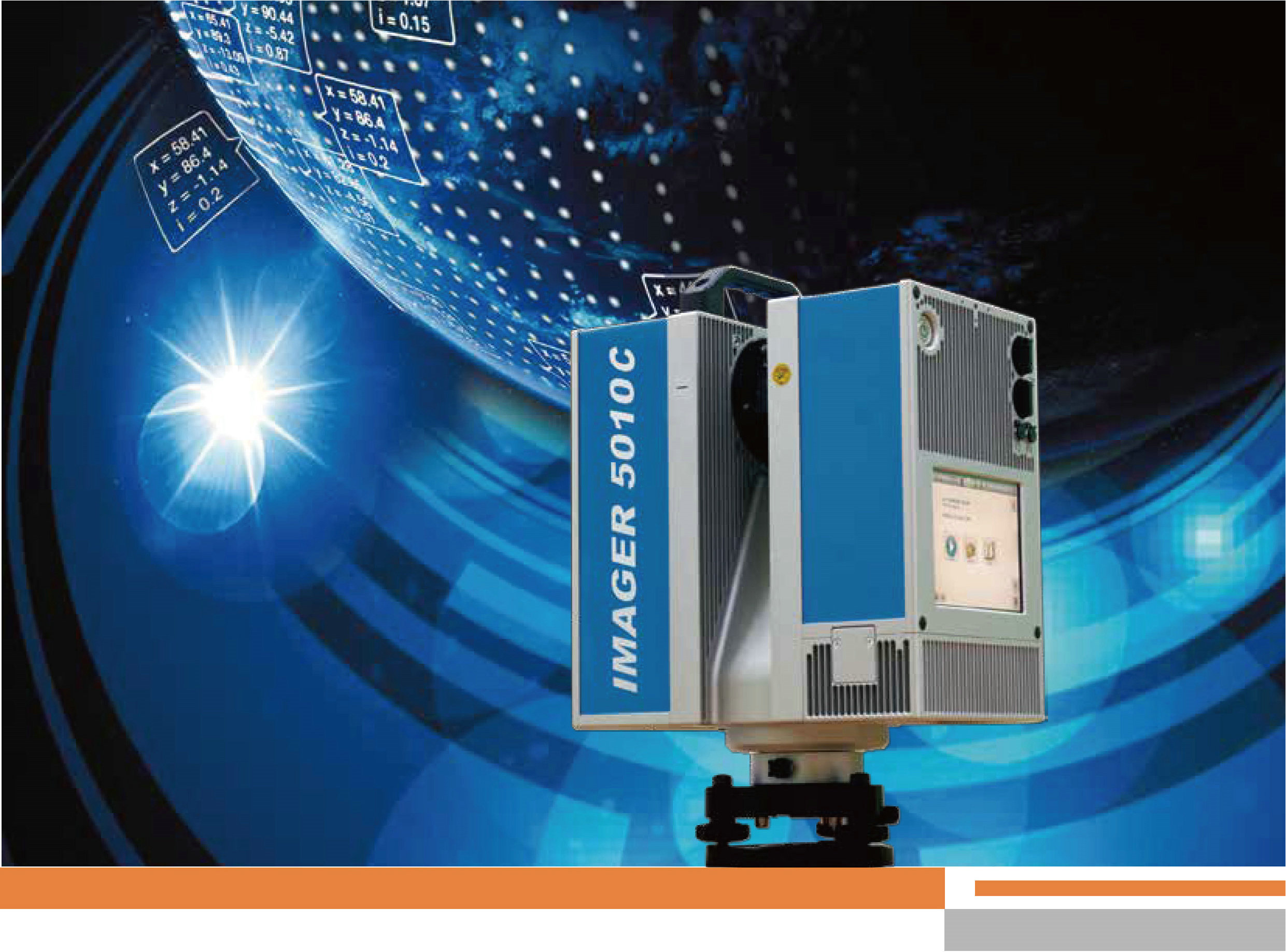

True color, high dynamics and high flexibility Z+F IMAGER 5010C sets a new standard for 3D scanners.

IMAGER 5010C is a device developed from reliable phase technology. IMAGER 5010C is characterized by fast scanning speed and simple operation, which greatly improves scanning efficiency.

Convenient operation

The touch screen display interface is clear and simple.

Quick scan

Just press the quick scan button twice to start the preset quick scan mode, and the entire scan only takes a few seconds.

Class 1 laser

The laser of IMAGER 5010C is a first-class laser (EN60825-1) with a wavelength of 1.5μm, and the laser beam is completely harmless.

100% independent operation

The concept of independent operation has been strengthened. The scanned data can be stored on two USB mobile storages or on the built-in flash memory card. The color display of the scanner can complete these basic functions such as zooming and measurement.

Measuring range 187m

Because of the superiority of the laser wavelength and the distance measuring system, the equipment has a measuring range of 187m, which is currently one of the best phase laser scanners with a measuring range.

High scan rate

With a scanning rate of 1016027 points per second, IMAGER 5010C has become one of the fastest 3D scanners in the world.

High-quality data

IMAGER 5010C has good angle resolution and distance measurement accuracy. Even in the case of long distances and poor reflective surfaces, the high data acquisition rate can ensure millimeter-level high precision.

Resolution/Quality

In the case of high measurement rates, there are four data quality levels and seven resolutions that can be set. Choose a suitable configuration according to the shape of the project or the object to be measured, and it can maintain a fairly high point density at a long distance.

Encapsulated mirror

The laser light is reflected by a rotating mirror with a speed of 50 revolutions per second. The mirror is enclosed in a protective glass cover to ensure high quality, high stability, and high durability.

320° x360° field of view

The horizontal 360° and vertical 320° field of view can achieve almost full coverage.

Fully integrated color camera

A low-noise color CMOS camera is installed in the rotor of the scanner. Selected lens and camera type, so that it can take high-quality photos in all kinds of light. Sophisticated and sophisticated post-processing algorithms can produce high-quality HDR color images from image information under poor lighting conditions.

Light and dexterous

The IMAGER 5010C is only 9.8 kg compact and has a volume of only 286×170×395mm (length×width×height).
