The Radian Plus & Radian Core laser tracker breaks through the design concept of the traditional tracker. It integrates a control box, temperature compensation system, inclination sensor and battery. Its compact design fully satisfies the completion of high-quality measurement tasks in a limited measurement space.
In addition, the Radian Plus & Radian Core laser tracker integrates a built-in WiFi wireless data transmission system, which greatly simplifies the installation procedures of the equipment and eliminates the troubles caused by the wires/connecting wires usually encountered during equipment installation.
The Radian Plus & Radian Core laser tracker adopts an absolute laser ranging system, which guarantees measurement accuracy at high speed and convenience. It also supports fast interrupted light connection and improves measurement efficiency. Its automatic target ball locking function enables the laser tracker to quickly find and lock the target ball automatically when the light is cut off, which greatly facilitates the use of the surveyor.
Composition of Radian Plus & Radian Core measurement system
It only needs the main unit of the Radian Plus & Radian Core absolute laser tracker and a laptop computer to form the Radian Plus & Radian Core absolute laser tracker measurement system, without any form of wired connection, Radian Plus & Radian Core can be connected wirelessly And with battery-powered functions. Other accessories include: 1 equipment tripod (or base), target ball (SMR), tool box and measurement software package. API companies can also provide users with various software interfaces and underlying software to facilitate their own development.
Radian Plus & Core Absolute Laser Tracker Features
Extremely portable
The maximum measuring range exceeds 160 meters
ADM absolute ranging fast and stable
Battery powered system
Target ball automatic locking function
Integrated environmental error compensation system
Quick start and efficient measurement
Built-in high-precision level system
Support horizontal, vertical, inverted and inclined installation
High-speed data transmission
Fully digital sensor weather station
Efficient measurement, fast and stable
Air and material temperature sensor
Support multiple types of targets (Radian Plus)
Quick connection of quick card installation
Compatible with wireless hidden point probe (Radian Plus)
Easy to use, only one person is required to install and operate
Outstanding design creates outstanding performance Radian Plus & Radian Core laser trackers are designed with UNIBODY design concepts and standards. While minimizing the Abbe error, the laser transmitter, built-in motor, encoder, mirror group, electronic components and other components are combined with The most scientific and reasonable way is integrated in the central part of the host. | |
Quickly achieve thermal balance to ensure measurement stability Due to the UNIBODY design concept and standards, the heat generated by the Radian Plus & Radian Core laser tracker during severe environmental temperature changes can be quickly distributed throughout the body, thereby ensuring that the tracker maintains a constant heat balance during the entire process, ensuring stable measurement Sex. | |
AOC system thermal energy management and control to improve measurement performance The Radian Plus & Radian Core laser tracker adopts the UNIBODY design concept. The built-in components are concentrated in the central part of the host in the most reasonable way, so that the heat can be evenly distributed in the instrument at the fastest speed, and then the AOC laser tracker is added. The cooling system (Air-Over-Cooling) performs thermal energy management and control, which enables the host to have better thermal stability, further reduces instrument errors and improves overall measurement performance. |
Extremely portable
The weight of the whole machine is less than 11 kg, no control box is needed, and the Radian Plus & Radian Core laser tracker can be installed in any position where you need it. And the whole machine can be easily put into the portable case, which is convenient to carry.
Built-in battery power system
Without the need for an AC adapter, the Radian Plus & Radian Core absolute laser tracker can still work normally for several hours depending on its built-in battery power supply system; an external battery system is also optional to further increase the battery working time.
Unparalleled compact design
The Radian Plus & Radian Core laser tracker breaks through the design concept of the traditional tracker. It integrates a control box, temperature compensation system, inclination sensor and battery. Its compact design fully satisfies the completion of high-quality measurement tasks in a limited measurement space.
Virtual level
Radian Plus & Radian Core integrates a built-in spirit level. The laser tracker with one-key leveling function can save a lot of preparation time and provide guarantee for effective measurement.
Built-in WiFi wireless transmission
Radian Plus & Radian Core integrates a built-in WiFi wireless data transmission system, which greatly simplifies the installation procedure of the device and eliminates the troubles caused by the wires/connecting wires usually encountered during device installation.
Absolute Laser Distance Measurement System (ADM)
The Radian Plus & Radian Core laser tracker adopts an absolute laser ranging system, which guarantees measurement accuracy at high speed and convenience. It also supports fast interrupted light connection and improves measurement efficiency.
Target ball automatic locking function (Autolock)
The Radian Plus & Radian Core laser tracker has an automatic target ball locking function. In the event of a light cut, the laser tracker will quickly and automatically find and lock the target ball, which greatly facilitates the use of the surveyor.
Environmental error compensation
The Radian Plus & Radian Core laser tracker integrates the weather station function, which can ensure the accuracy and precision of the measurement in various temperature and humidity measurement environments. The working temperature can be from -10°C to 45°C.
service and support
There are service centers in major cities across the country, and representative offices and offices in many places around the world. The excellent service team is on standby at any time to provide you with high-quality technical service and support.

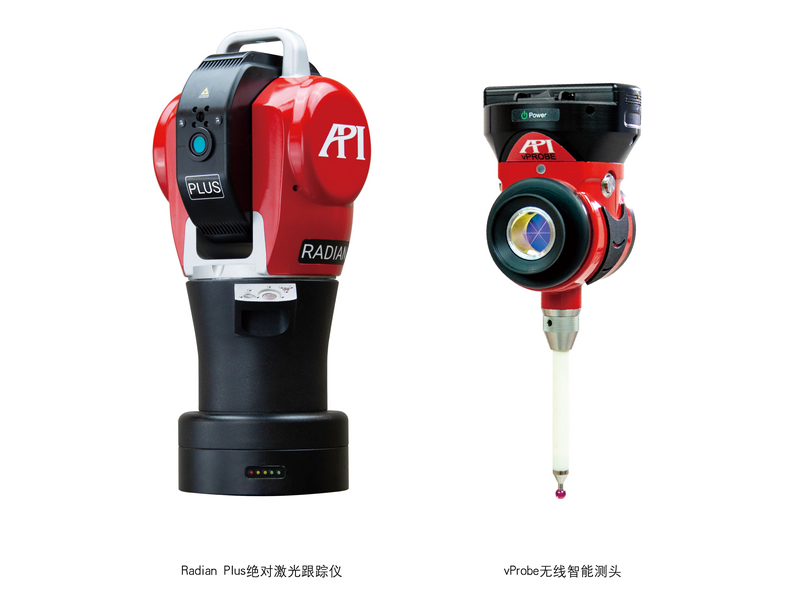

Complete wireless precision measurement system
The Radian Plus absolute laser tracker is perfectly compatible with the vProbe wireless intelligent probe, which is also based on the wireless precision measurement technology platform, to form a wireless precision measurement system. Really does not need any cables, connecting wires, full wireless signal transmission, battery power supply system, the achievement is extremely convenient.
The vProbe wireless intelligent probe is small and light, ergonomically designed, and fits in the hand; the trigger switch is designed reasonably, which can facilitate the operator to issue measurement instructions; the dual-probe design can easily measure the point to be measured at any position; and The position of the button of the needle switching system is reasonable, which is convenient for timely switching during the measurement process.

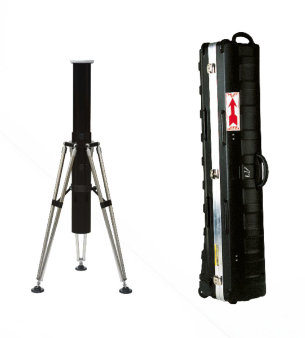

 | Height-adjustable standard size tripod It is a uniquely designed tripod with ultra-light, portable and high-strength characteristics, providing stable support for the same brand of instruments. Comes with a portable suitcase with wheels for your convenience. Height: 1.04m to 1.45m (adjustable) Weight: 13.15 kg |

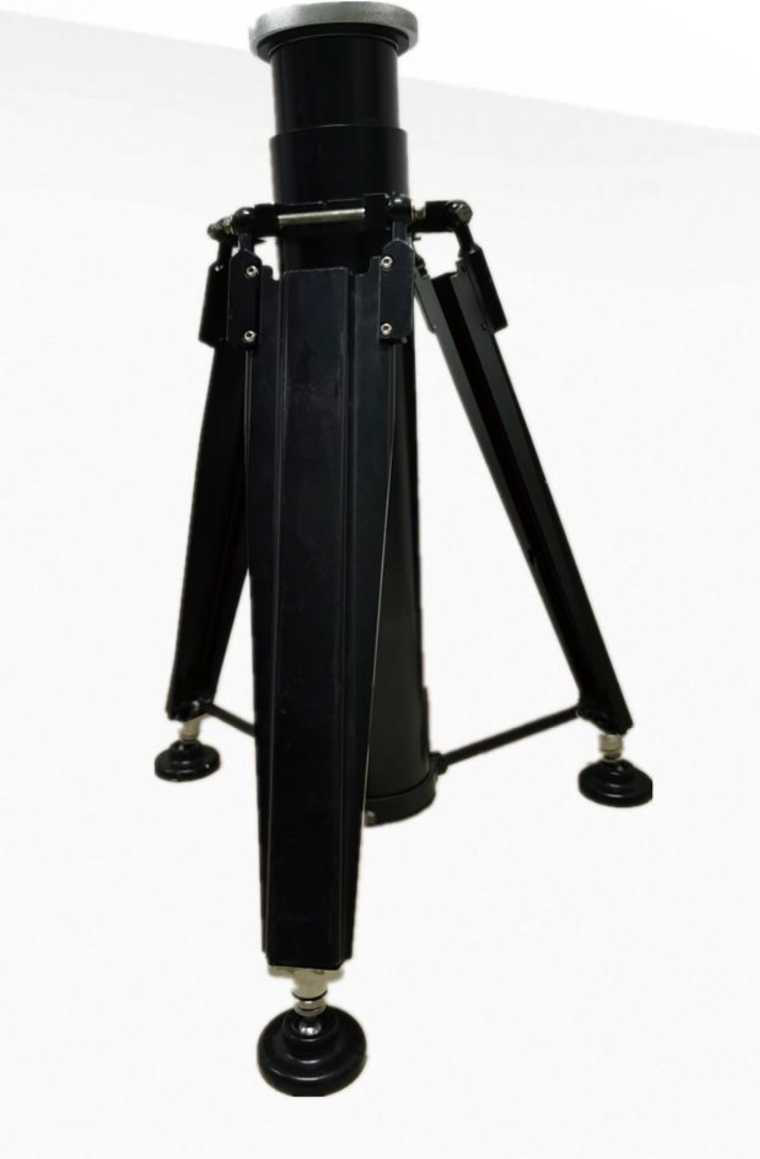

 | Short size tripod It has the same characteristics as the standard tripod of the same brand, but the size is small, convenient and practical. Height: 0.71m to 0.94m (adjustable) Weight: 9.98 kg |

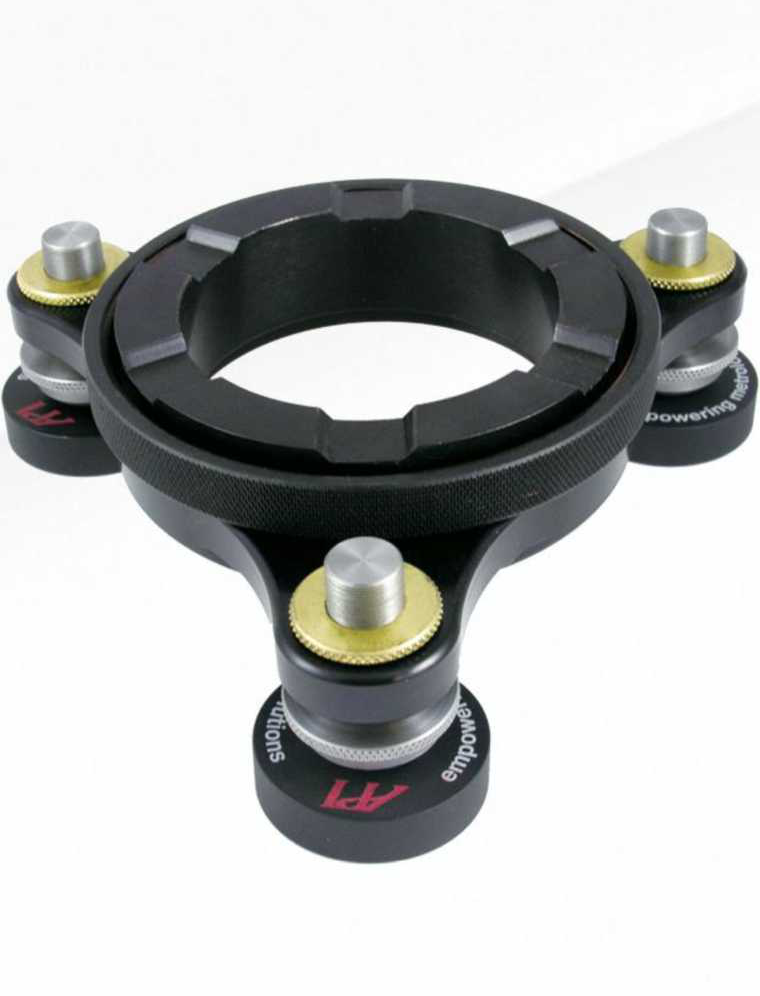

 | Tripod base Provide stable support for the same brand instruments that need to be fixed on the ground or on the test bench. Height: 6.35 cm Weight: 1.59 kg |

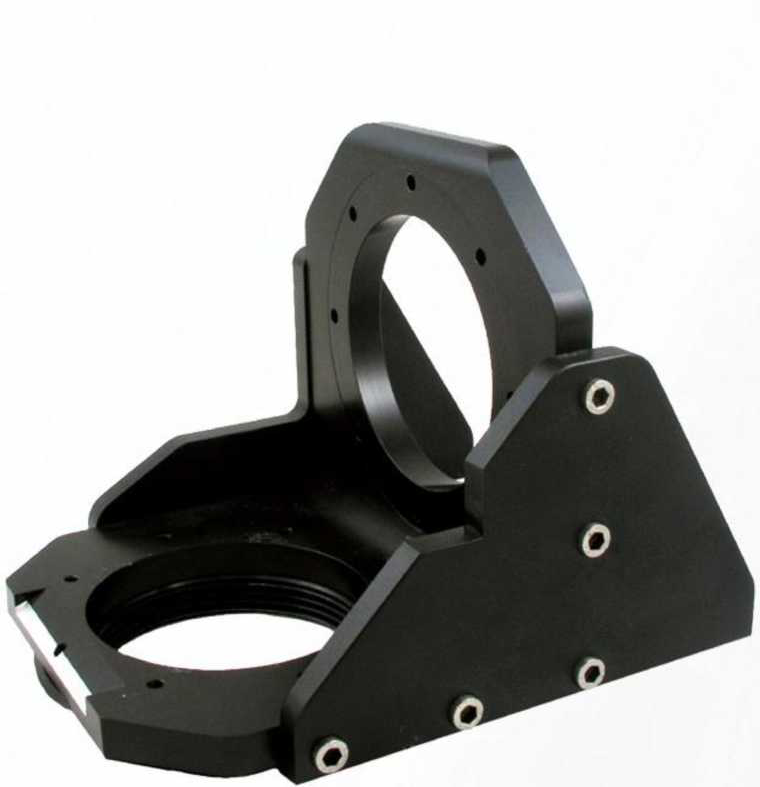

 | Right angle adapter Provide a 90° angle of fixation and support for the same brand instrument |
 | Quick snap ring It is suitable for the fixed connection of all instruments of the same brand with the size of 3.5"×8. |
vProbe wireless smart probe
The vProbe wireless intelligent probe can work perfectly with the Radian Plus absolute laser tracker to form a wireless precision measurement system, truly realizing complete wireless precision measurement. The whole process is fast, convenient, and wireless operation, which greatly facilitates the user and can adapt to a variety of working environments.
The vProbe wireless smart probe is perfectly compatible with Radian Plus and Radian Pro laser trackers.
